Application Scope:
High Vacuum tempering furnace is mainly applied for re-treatment of products after their vacuum quenching treatment, which will promise the retaining of product’s property advantages (against oxidization, decarburization, discolourization, corrosion, contamination, etc) and keep it from degradation after quenching. This furnace can also be used for aging treatment for Be-bronze parts.
Characteristics:
Our vacuum tempering furnace can be designed and developed according to the requirement of customers, and the finished be delivered together with the quenching furnace. After years of designing, developing and utilizing, we accumulate rich R&D experience in this field.
High vacuum quenching furnace sizes for reference are listed as follow:
Furnace style | Usable size (mm) | Rated temperature (℃) | Rated Loading capacity (kg) | Total Power (kW) |
Vertical | 2200×1800×2000 | 900 | 15000 | 320 |
φ1200×1200 | 1200 | 1000 | 220 |
|
φ1000×1000 | 1200 | 500 | 180 |
|
φ800×800 | 1200 | 300 | 150 |
|
Horizontal | 2600×1200×1200 | 900 | 6000 | 200 |
2600×1000×1200 | 900 | 5000 | 180 |
|
2000×800×800 | 1600 | 1000 | 400 |
|
1000×600×600 | 900 | 600 | 100 |
|
800×500×500 | 900 | 400 | 80 |
|
600×400×400 | 1200 | 200 | 95 |
|
500×300×300 | 1200 | 100 | 75 |
|
Successful Project Example(s):

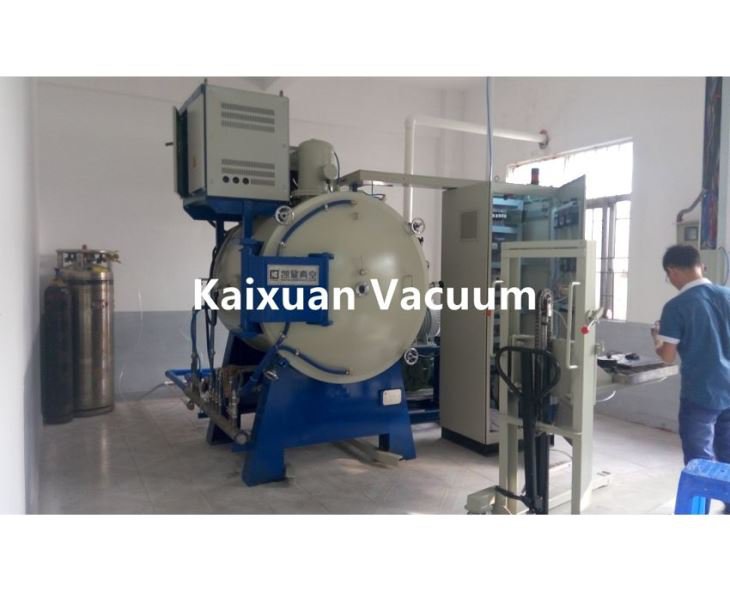

High vacuum tempering furnace – Dongguan Mengtu Metal Science Co.,Ltd.
